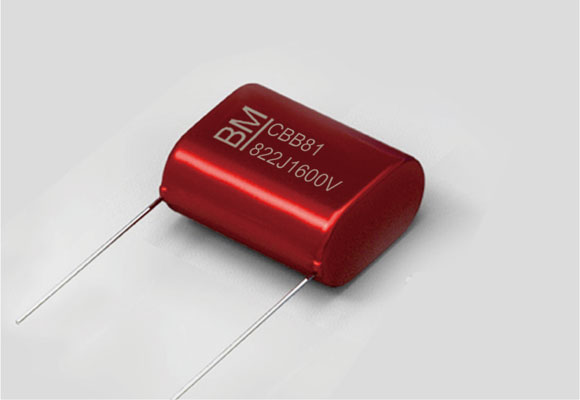

CBB81 金屬化聚丙烯膜、箔電容器
| 產品說明： |
| 采用聚丙烯膜和鋁箔無感式卷繞、阻燃環氧粉末包封、 鍍錫銅線引出，具有高耐壓、高絕緣、耐沖擊、低損耗、 低溫升等特點。適用于高壓、脈沖、點火、諧振電路中。 |

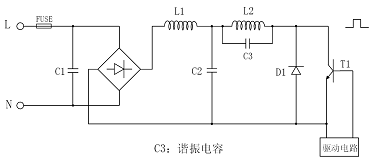

典型線路圖：
引用標準 | GB/T14579﹑IEC 60384-17 | |
氣候類別 | 40/85/21 | |
額定電壓 | 1000VDC～3000VDC | |
容量范圍 | 0.0022μF～1μF | |
容量偏差 | ±5%(J)、±10%(K) | |
耐電壓 | 極間 | 2.5*UR(VDC)/10s |
絕緣電阻(20℃) | 極間 | ≥30000MΩ, CR≤0.33μF (100Vdc,60s) |
極殼 | ≥100000MΩ ( 100Vdc,60s) | |
損耗角正切 (20℃) | ≤0.001 (10KHz ) | |

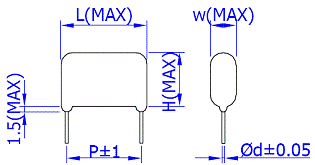

| 常用規格（Unit：mm） | |||||||||||||||
Rated Cap. | 1000VDC | 1600VDC | 2000VDC | ||||||||||||
L | W | H | P | Фd | L | W | H | P | Фd | L | W | H | P | Фd | |
0.0022μF | 18 | 6.5 | 12.5 | 15.0 | 0.8 | 18 | 6.5 | 12.5 | 15.0 | 0.8 | 18 | 7.0 | 12.5 | 15.0 | 0.8 |
0.0047μF | 18 | 9.0 | 14.5 | 15.0 | 0.8 | 18 | 6.5 | 12.5 | 15.0 | 0.8 | 18 | 9.5 | 15 | 15.0 | 0.8 |
0.0056μF | 18 | 8.5 | 14.0 | 15.0 | 0.8 | 18 | 8.5 | 14.0 | 15.0 | 0.8 | 25 | 8.0 | 13.5 | 22.0 | 0.8 |
0.0068μF | 18 | 7.5 | 13.5 | 15.0 | 0.8 | 18 | 7.5 | 13.5 | 15.0 | 0.8 | 25 | 8.5 | 14.0 | 22.0 | 0.8 |
0.0082μF | 18 | 8.5 | 14.0 | 15.0 | 0.8 | 18 | 8.5 | 14.0 | 15.0 | 0.8 | 25 | 9.0 | 15.0 | 22.0 | 0.8 |
0.010μF | 18 | 7.0 | 12.0 | 15.0 | 0.8 | 18 | 8.0 | 12.0 | 15.0 | 0.8 | 25 | 11 | 16.5 | 22.0 | 0.8 |
0.015μF | 18 | 10 | 15.5 | 15.0 | 0.8 | 18 | 10 | 15.5 | 15.0 | 0.8 | 25 | 8.5 | 14.0 | 22.0 | 0.8 |
0.020μF | 18 | 10 | 17.0 | 15.0 | 0.8 | 18 | 10 | 17.0 | 15.0 | 0.8 | 25 | 9.0 | 16.0 | 22.0 | 0.8 |
0.022μF | 18 | 10.5 | 17.5 | 15.0 | 0.8 | 18 | 10.5 | 17.5 | 15.0 | 0.8 | 25 | 10 | 15.5 | 22.0 | 0.8 |
0.024μF | 18 | 10.5 | 18.0 | 15.0 | 0.8 | 18 | 10.5 | 18.0 | 15.0 | 0.8 | 25 | 9.5 | 17 | 22.0 | 0.8 |
0.027μF | 25 | 8.0 | 15.5 | 22.0 | 0.8 | 25 | 8.0 | 15.5 | 22.0 | 0.8 | 25 | 10 | 17.5 | 22.0 | 0.8 |
0.030μF | 25 | 8.5 | 15.5 | 22.0 | 0.8 | 25 | 8.5 | 15.5 | 22.0 | 0.8 | 25 | 11 | 18.5 | 22.0 | 0.8 |
0.039μF | 25 | 9.5 | 16.5 | 22.0 | 0.8 | 25 | 9.5 | 16.5 | 22.0 | 0.8 | 25 | 12.5 | 20 | 22.0 | 0.8 |
0.10μF | 34 | 11.5 | 19.0 | 31.0 | 0.8 | 34 | 11.5 | 19.0 | 31.0 | 0.8 | 34 | 21.5 | 29 | 31.0 | 0.8 |
